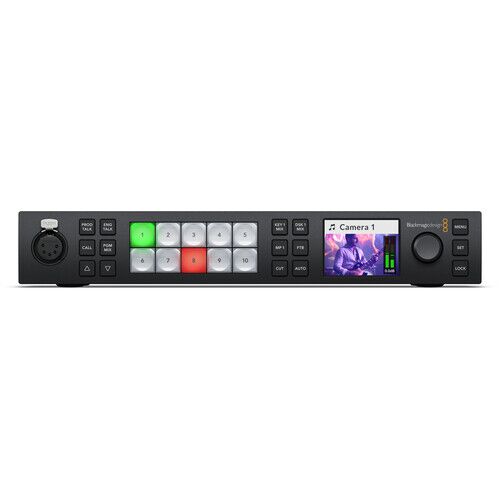

Name: Blackmagic Design ATEM 1 M/E Constellation 4K
SKU: 245
Price: 2229.85 USD
Availability: InStock

Blackmagic Design ATEM 1 M/E Constellation 4K

$2,229.85

Available M/E Layers	1 M/E
Effect Types	4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE
Downstream Keys	1x Chroma, Luma, DVE
Generators	2x Color 5x Pattern
Audio Mixing	48-Channel Mixing

Processing

Switching Type	Pushbutton, Software
Latency	10 Lines
Processing Resolution	UHD 4K
Color Processing	10-Bit 4:2:2

Description

The ATEM 1 M/E Constellation 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 10 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to six 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a Multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.
