Name: Blackmagic Design MultiView 16
SKU: 141
Price: 1821.25 USD
Availability: InStock

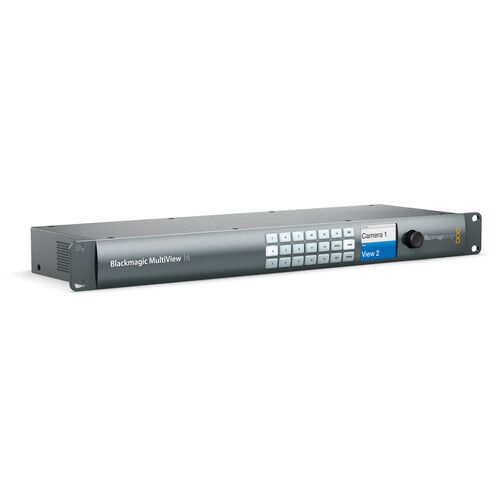

Blackmagic Design MultiView 16

$1,821.25

Inputs	16 x BNC (3G-SDI / 6G-SDI / HD-SDI)
Embedded Audio	SDI
Outputs	16x BNC (6G-SDI / HD-SDI / SD-SDI, Looping) 2x BNC (6G-SDI) 2x BNC (HD-SDI) 1x HDMI
Video Format	SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K: 24 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps

Description

Key Features

16 x 6G-SDI Inputs with Loop Outputs
1 x HDMI, 4 x SDI Multiview Outputs
Supports SD, HD, Ultra HD 4K, DCI 4K
2 x 2, 3 x 3, 4 x 4 Multiview Grids
Built-In LCD with Spin Knob Control
Push Buttons on Front Panel
Ethernet for Remote Control
1 RU Machined Aluminum Chassis
Built-In Multi-Voltage Power Supply

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high-resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided as well as a loop output for each 6G-SDI input for passing the signals to additional devices.
